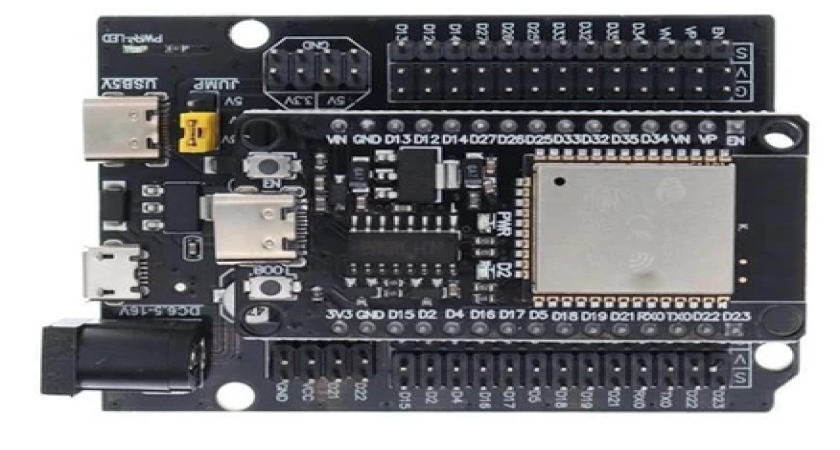

SMART FARMING ESP32 - FULL AUTOMATIC



Kelompok 1 – Water & Irrigation (4 relay)

Relay	Fungsi	Pin ESP32
RELAY_AIR	Isi air tandon	25
RELAY_POMPA_HARIAN	Pompa utama hidroponik	13
RELAY_SALUR	Pompa salur ke tanaman	14
RELAY_IRIGASI_TANAH	Pompa tetes tanah	33

Kelompok 2 – Nutrisi & Circulation (4 relay)

Relay	Fungsi	Pin ESP32
RELAY_NUTRISI_A	Dosing nutrisi A	26
RELAY_NUTRISI_B	Dosing nutrisi B	32
RELAY_SIRKULASI	Pompa sirkulasi untuk mixing	27
RELAY_FAN	Fan / exhaust	12

Kelompok 3 – pH Control (2 relay)

Relay	Fungsi	Pin ESP32
RELAY_UP	Naikkan pH	2
RELAY_DOWN	Turunkan pH	4



Kelompok 1 – Tank & Water Level

Sensor	Fungsi	Pin ESP32
HC-SR04	Mengukur tinggi air di tanki	TRIG → 5, ECHO → 18
TDS	Mengukur konduktivitas / PPM air	34

Kelompok 2 – Tanah & Lingkungan

Sensor	Fungsi	Pin ESP32
Soil Moisture	Mengukur kelembaban tanah	35
DHT22	Mengukur suhu & kelembaban udara	15

Kelompok 3 – pH & Nutrisi

Sensor	Fungsi	Pin ESP32
pH sensor	Mengukur pH larutan	39 / VN







/* Smart Farming ESP32 - Full Automatic

   Relay logic:

     RELAY_AIR           - isi air tandon (GPIO 25)

     RELAY_NUTRISI_A     - dosing nutrisi A (GPIO 26)

     RELAY_NUTRISI_B     - dosing nutrisi B (GPIO 32)

     RELAY_SIRKULASI     - pompa sirkulasi (GPIO 27)

     RELAY_POMPA_HARIAN  - pompa utama hidroponik (GPIO 13)

     RELAY_SALUR         - pompa salur ke tanaman (GPIO 14)

     RELAY_IRIGASI_TANAH - pompa tetes tanah (GPIO 33)

     RELAY_FAN           - fan/exhaust (GPIO 12)

     RELAY_UP            - pH naik (GPIO 2)

     RELAY_DOWN          - pH turun (GPIO 4)



   Sensors:

     HC-SR04 TRIG -> GPIO 5, ECHO -> GPIO 18

     TDS analog -> GPIO 34

     SOIL analog -> GPIO 35

     PH analog  -> GPIO 39

     DHT22      -> GPIO 15

*/



#include

#include

#include

#include

#include

#include "DHT.h"



// ----------------- CONFIG -----------------

const char* ssid = "BINTANG TERANG";

const char* password = "1sampai8";



#define DHTPIN 15

#define DHTTYPE DHT22

DHT dht(DHTPIN,DHTTYPE);



// Tank

const float TANK_HEIGHT_CM = 25.0;

const float TANK_VOLUME_L = 15.0;

const float VOLUME_TARGET_L = 8.0;



// Soil thresholds

const float SOIL_ON_PERCENT = 40.0;

const float SOIL_OFF_PERCENT = 60.0;



// TDS / PPM baseline

const float PPM_BASE = 300.0;

const float PPM_DAILY_INC = 28.0;



// pH target

const float PH_TARGET = 6.0;

const float PH_TOLERANCE = 0.2;



// NTP / WiFi

const unsigned long NTP_UPDATE_INTERVAL = 15UL*60UL*1000UL;



// ----------------- PIN -----------------

#define RELAY_AIR           25

#define RELAY_NUTRISI_A     26

#define RELAY_NUTRISI_B     32

#define RELAY_SIRKULASI     27

#define RELAY_POMPA_HARIAN  13

#define RELAY_SALUR         14

#define RELAY_IRIGASI_TANAH 33

#define RELAY_FAN           12

#define RELAY_UP            2

#define RELAY_DOWN          4



#define TRIG_PIN 5

#define ECHO_PIN 18

#define TDS_PIN 34

#define SOIL_PIN 35

#define PH_PIN 39



// ----------------- GLOBALS -----------------

LiquidCrystal_I2C lcd(0x27,16,2);

WiFiUDP ntpUDP;

NTPClient timeClient(ntpUDP,"pool.ntp.org",7*3600);

Preferences preferences;



int dayNumber = 1;

float targetPPM = PPM_BASE;

float currentPPM = 0.0;

float currentVolumeL = 0.0;

float soilPercent = 0.0;

float temp = 0.0, hum = 0.0;

float phValue = 7.0;



unsigned long lastNTPUpdate=0;

unsigned long lastSlideChange=0;

const unsigned long SLIDE_MS=3000;

int lcdPage=0;

unsigned long lastDebug=0;



// State machine

enum CycleState{

  C_IDLE,

  C_CHECK_VOLUME,

  C_FILLING_WATER,

  C_CHECK_PPM,

  C_DOSE_A,

  C_WAIT_AFTER_A,

  C_DOSE_B,

  C_CIRCULATE_MIX,

  C_IRRIGATE_SALUR,

  C_COMPLETE

};

CycleState cycleState = C_IDLE;

unsigned long stateStart=0;

const unsigned long MAX_FILL_MS=120000;



// ----------------- HELPERS -----------------

void relayWrite(int pin,bool on){digitalWrite(pin,on?HIGH:LOW);}

void allRelaysOff(){

  relayWrite(RELAY_AIR,false); relayWrite(RELAY_NUTRISI_A,false);

  relayWrite(RELAY_NUTRISI_B,false); relayWrite(RELAY_SIRKULASI,false);

  relayWrite(RELAY_POMPA_HARIAN,false); relayWrite(RELAY_SALUR,false);

  relayWrite(RELAY_IRIGASI_TANAH,false); relayWrite(RELAY_FAN,false);

  relayWrite(RELAY_UP,false); relayWrite(RELAY_DOWN,false);

}

void saveDayNumber(){

  preferences.begin("hydro_nvs",false);

  preferences.putInt("day_num",dayNumber);

  preferences.end();

}

void serialDebug(){

  Serial.println("------------------------------------------------");

  Serial.printf("Time: %s | Hari ke-%d\n",timeClient.getFormattedTime().c_str(),dayNumber);

  Serial.printf("Volume: %.2f L | TargetMin: %.2f L\n",currentVolumeL,VOLUME_TARGET_L);

  Serial.printf("PPM: %.0f | TargetPPM: %.0f\n",currentPPM,targetPPM);

  Serial.printf("Soil: %.0f%%\n",soilPercent);

  Serial.printf("Temp: %.1fC Hum: %.1f%%\n",temp,hum);

  Serial.printf("pH: %.2f\n",phValue);

  Serial.printf("WiFi: %s\n",WiFi.status()==WL_CONNECTED?"ON":"OFF");

  Serial.printf("CycleState: %d\n",(int)cycleState);

}



// ----------------- SENSORS -----------------

float readTDSppm(){

  long sum=0; const int SAMPLES=10;

  for(int i=0;i<SAMPLES;i++){sum+=analogRead(TDS_PIN); delay(2);}

  float raw=sum/(float)SAMPLES;

  float voltage=raw*(3.3/4095.0);

  float ec=(voltage/3.3)*2000.0;

  float ppm=ec*0.5;

  return ppm;

}



float readTankVolumeLiters(){

  long totalDur=0; const int SAMPLES=5;

  for(int i=0;i<SAMPLES;i++){

    digitalWrite(TRIG_PIN,LOW); delayMicroseconds(2);

    digitalWrite(TRIG_PIN,HIGH); delayMicroseconds(10);

    digitalWrite(TRIG_PIN,LOW);

    long dur=pulseIn(ECHO_PIN,HIGH,30000); if(dur==0) dur=30000;

    totalDur+=dur; delay(5);

  }

  float avgDur=totalDur/(float)SAMPLES;

  float distanceCm=(avgDur*0.0343)/2.0;

  float effectiveDistance = distanceCm-2.0;

  if(effectiveDistance<0) effectiveDistance=0;

  if(effectiveDistance>TANK_HEIGHT_CM) effectiveDistance=TANK_HEIGHT_CM;

  float waterHeight=TANK_HEIGHT_CM-effectiveDistance;

  return (waterHeight/TANK_HEIGHT_CM)*TANK_VOLUME_L;

}



float readSoilPercent(){

  int raw=analogRead(SOIL_PIN);

  float pct=map(constrain(raw,0,4095),0,4095,100,0);

  if(pct<0)pct=0; if(pct>100)pct=100;

  return pct;

}



float readPH(){

  int raw=analogRead(PH_PIN);

  float voltage=(float)raw/4095.0*3.3;

  float ph=7.0 + (2.5-voltage); // kalibrasi sederhana

  if(ph<0) ph=0; if(ph>14) ph=14;

  return ph;

}



void lcdPrint(int x,int y,String text){

  lcd.setCursor(x,y);

  lcd.print("                ");

  lcd.setCursor(x,y);

  lcd.print(text);

}



// ----------------- CYCLE -----------------

void enterState(CycleState s){cycleState=s; stateStart=millis(); Serial.printf("[CYCLE] Enter state %d\n",(int)s);}

void processCycle(){

  unsigned long elapsed=millis()-stateStart;

  switch(cycleState){

    case C_IDLE: break;

    case C_CHECK_VOLUME:

      if(currentVolumeL<VOLUME_TARGET_L){enterState(C_FILLING_WATER);relayWrite(RELAY_AIR,true);}

      else enterState(C_CHECK_PPM); break;

    case C_FILLING_WATER:

      if(currentVolumeL>=VOLUME_TARGET_L){relayWrite(RELAY_AIR,false);enterState(C_CHECK_PPM);}

      else if(elapsed>MAX_FILL_MS){relayWrite(RELAY_AIR,false);enterState(C_IDLE); Serial.println("[CYCLE] Fill timeout");} break;

    case C_CHECK_PPM:

      currentPPM=readTDSppm();

      Serial.printf("[CYCLE] Read PPM: %.1f target: %.1f\n",currentPPM,targetPPM);

      if(currentPPM<targetPPM) enterState(C_DOSE_A);

      else enterState(C_CIRCULATE_MIX); break;

    case C_DOSE_A: relayWrite(RELAY_NUTRISI_A,true); delay(3000); relayWrite(RELAY_NUTRISI_A,false); enterState(C_WAIT_AFTER_A); break;

    case C_WAIT_AFTER_A: if(elapsed>=30000) enterState(C_DOSE_B); break;

    case C_DOSE_B: relayWrite(RELAY_NUTRISI_B,true); delay(3000); relayWrite(RELAY_NUTRISI_B,false); enterState(C_CIRCULATE_MIX); break;

    case C_CIRCULATE_MIX: relayWrite(RELAY_SIRKULASI,true); delay(15000); relayWrite(RELAY_SIRKULASI,false); enterState(C_IRRIGATE_SALUR); break;

    case C_IRRIGATE_SALUR: relayWrite(RELAY_SALUR,true); delay(10000); relayWrite(RELAY_SALUR,false); enterState(C_COMPLETE); break;

    case C_COMPLETE:

      dayNumber++; targetPPM=PPM_BASE+(dayNumber-1)*PPM_DAILY_INC; saveDayNumber(); enterState(C_IDLE); break;

  }

}



// ----------------- SETUP -----------------

void setup(){

  Serial.begin(115200);



  pinMode(RELAY_AIR,OUTPUT); pinMode(RELAY_NUTRISI_A,OUTPUT); pinMode(RELAY_NUTRISI_B,OUTPUT);

  pinMode(RELAY_SIRKULASI,OUTPUT); pinMode(RELAY_POMPA_HARIAN,OUTPUT); pinMode(RELAY_SALUR,OUTPUT);

  pinMode(RELAY_IRIGASI_TANAH,OUTPUT); pinMode(RELAY_FAN,OUTPUT);

  pinMode(RELAY_UP,OUTPUT); pinMode(RELAY_DOWN,OUTPUT);



  pinMode(TRIG_PIN,OUTPUT); pinMode(ECHO_PIN,INPUT);

  pinMode(TDS_PIN,INPUT); pinMode(SOIL_PIN,INPUT); pinMode(PH_PIN,INPUT);



  allRelaysOff();



  lcd.init(); lcd.backlight(); lcd.clear(); lcdPrint(0,0,"Booting...");



  WiFi.begin(ssid,password);

  int attempts=0;

  while(WiFi.status()!=WL_CONNECTED && attempts<20){delay(500);Serial.print(".");attempts++;}

  if(WiFi.status()==WL_CONNECTED){Serial.println("\nWiFi connected"); lcdPrint(0,1,"WiFi: OK"); timeClient.begin(); timeClient.update(); lastNTPUpdate=millis();}

  else{Serial.println("\nWiFi failed"); lcdPrint(0,1,"WiFi: FAIL");}



  preferences.begin("hydro_nvs",true); dayNumber=preferences.getInt("day_num",1); preferences.end();

  targetPPM=PPM_BASE+(dayNumber-1)*PPM_DAILY_INC;



  dht.begin(); delay(1000); lcd.clear();

}



// ----------------- LOOP -----------------

void loop(){

  // WiFi reconnect & NTP update

  static unsigned long lastReconnect=0;

  if(WiFi.status()!=WL_CONNECTED && millis()-lastReconnect>30000){WiFi.begin(ssid,password);lastReconnect=millis();}

  else if(millis()-lastNTPUpdate>NTP_UPDATE_INTERVAL){timeClient.update();lastNTPUpdate=millis();}



  // Read sensors

  currentVolumeL=readTankVolumeLiters();

  currentPPM=readTDSppm();

  soilPercent=readSoilPercent();

  temp=dht.readTemperature(); hum=dht.readHumidity();

  phValue=readPH();



  // Soil pump

  static bool soilPumpOn=false;

  if(!soilPumpOn && soilPercent<SOIL_ON_PERCENT){relayWrite(RELAY_IRIGASI_TANAH,true); soilPumpOn=true;}

  else if(soilPumpOn && soilPercent>SOIL_OFF_PERCENT){relayWrite(RELAY_IRIGASI_TANAH,false); soilPumpOn=false;}



  // pH control automatic

  if(phValue<PH_TARGET-PH_TOLERANCE){relayWrite(RELAY_UP,true); relayWrite(RELAY_DOWN,false);}

  else if(phValue>PH_TARGET+PH_TOLERANCE){relayWrite(RELAY_DOWN,true); relayWrite(RELAY_UP,false);}

  else{relayWrite(RELAY_UP,false); relayWrite(RELAY_DOWN,false);}



  int hour=0,minute=0;

  if(WiFi.status()==WL_CONNECTED) timeClient.update();

  hour=timeClient.getHours(); minute=timeClient.getMinutes();



  // Pompa harian

  if(cycleState==C_IDLE){if(hour>=8 && hour<18) relayWrite(RELAY_POMPA_HARIAN,true); else relayWrite(RELAY_POMPA_HARIAN,false);}

  else relayWrite(RELAY_POMPA_HARIAN,false);



  // Daily schedule

  if(cycleState==C_IDLE){if(hour==6 && minute==0) allRelaysOff(); if(hour==18 && minute==0) enterState(C_CHECK_VOLUME);}



  // Cycle

  if(cycleState!=C_IDLE) processCycle();



  // LCD slides

  if(millis()-lastSlideChange>=SLIDE_MS){

    lastSlideChange=millis();

    lcdPage=(lcdPage+1)%6;

    lcd.clear();

    if(lcdPage==0){

        String t = WiFi.status()==WL_CONNECTED ? timeClient.getFormattedTime().substring(0,8) : "NoTime";

        lcdPrint(0,0, String("Jam:") + t);

        lcdPrint(0,1, String("Hari:") + String(dayNumber) + " W:" + (WiFi.status()==WL_CONNECTED ? "ON" : "OFF"));

    } else if(lcdPage==1){

        lcdPrint(0,0, String("Vol:") + String(currentVolumeL,1) + "L Tar:" + String(VOLUME_TARGET_L,1));

        lcdPrint(0,1, String("PPM:") + String(currentPPM,0) + " T:" + String(targetPPM,0));

    } else if(lcdPage==2){

        lcdPrint(0,0, String("Soil:") + String(soilPercent,0) + "%");

        lcdPrint(0,1, String("SoilPump:") + (digitalRead(RELAY_IRIGASI_TANAH) ? "ON" : "OFF"));

    } else if(lcdPage==3){

        lcdPrint(0,0, String("Temp:") + String(temp,1) + "C");

        lcdPrint(0,1, String("Hum:") + String(hum,1) + "%");

    } else if(lcdPage==4){

        lcdPrint(0,0, String("pH:") + String(phValue,2));

        lcdPrint(0,1, String("UP:") + (digitalRead(RELAY_UP)?"ON":"OFF") + " DN:" + (digitalRead(RELAY_DOWN)?"ON":"OFF"));

    } else if(lcdPage==5){

        lcdPrint(0,0, String("State:") + String((int)cycleState));

        lcdPrint(0,1, String("Fan:") + (digitalRead(RELAY_FAN)?"ON":"OFF") + " Tmp:" + String(temp,1) + "C");

    }

  }



  // Serial debug

  if(millis()-lastDebug>5000){lastDebug=millis(); serialDebug();}

  delay(200);

}
